- Condition: New
- Type: clay brick machine, solid brick making machine
- Brick Raw Material: Clay
- Processing: Brick Production Line
- Method: Vacuum Extruder
- Automatic: Yes
- Capacity: 3000-4000 pcs/h
- Place of Origin: Henan, China (Mainland)
- Brand Name: Yingfeng
- Model Number: JZ280
- Voltage: 220~440V
- Power: 90kw
- Dimension(L*W*H): 4.6X2.2X1.5
- Certification: ISO9001:2000
- Warranty: 2 years
- After-sales Service Provided: Engineers available to service machinery overseas
- Brick type: solid
- Body of machine: High Manganese steel
- Adobe moisture: 7% to 15%
- Drying way: kiln dryer
- Color: customized
- Brick Raw material: mud,clay ,soil
Packaging & Delivery
|Delivery Detail:||15 days after deposit|
Top selling! Yingfeng JZ280 fired clay brick making machine
We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30 varieties and over 100 specifications.Now we have built more than 2000 brick production line in China and abroad. Our main products:
What's the features of JZ series solid brick making machine?
JZ280 series Non-Vacuum solid brick making machine is the earliest and mature product.
It usually takes one motor.It is suitable to the following buyers:
1.Having limited electric power and very limited budget and not much demand for bricks amount
2.In buyers brick market, no much requirements on brick quality
3.Only wants to produce solid bricks (small hole brick is also possible if your raw material is fine enough for above
30 model extruder)
The difference between non-vacuum and vacuum extruder
1. Non-vacuum extruder usually can only produce solid bricks. . Vacuum brick is extruded out of the vacuum extruder.
And non- vacuum extruder has no extraction equipment, so the brick hardness is not so much as vacuum bricks.
2.Because the vacuum brick is first extracted with air and water , naturally shorter firing time, rapid proto typing. Greatly reducing the production cycle.
Whole production line
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail.
Void ration ≤ 10%
Void ration 15%~35%
Note: The above brick sampe is just for your reference, We can provide other different brick machine with different mould sizes according to your requirements.
JZ280 fired brick making machine production line:
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
JZ280 fired brick making machine Delievery For Our Clients. Packing list:
|Brick exturder||1 set|
|Box Feeder||1 set|
|Double Roller Crusher||1 set|
|Clay Shaft Mixer||1 set|
|Brick Cutter||1 set|
|Auto-board bearer||1 set|
|Belt conveyor||2 set|
|V belt||1 set|
|Electric cabinet||1 set|
|Secondary Control cabinet||2 set|
|2 years spare parts||1 set|
|Brick factory Tools||1 set|
|Warranty Card||1 copy|
|Product Manual||1 copy|
Note: The above packing list is based on standard clay brick production line, if your soil contains stones, grass root, then extra equipment need to be added. The final packing list will be changed according to buyer's final machine order
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will
be new when arriving at customer hand.
3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.
Our solid brick making machine have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa,
Uganda, Mozambique, Zimbabwe,Congo,Peru, Brazil, Iraq ,Bolivia Mexico,etc. and have won great fame

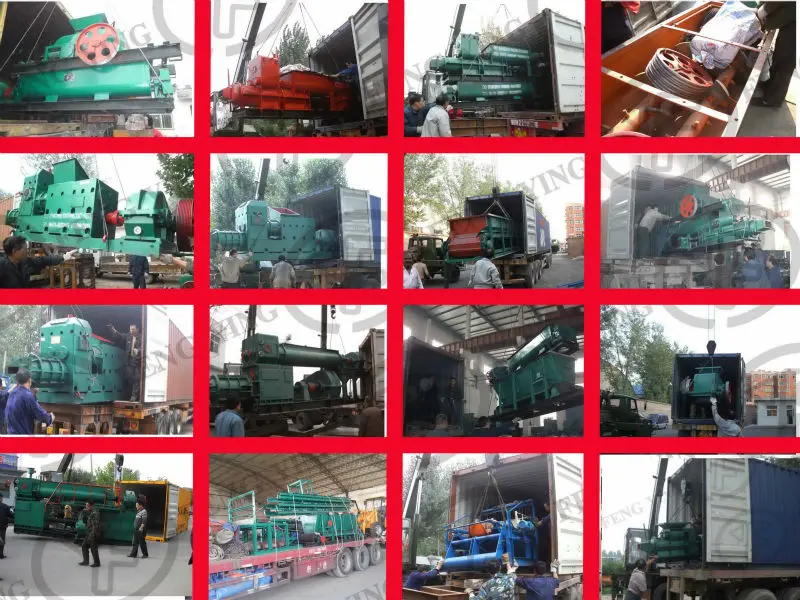

and popularity..Below is part of our delivery photos for our clients from different countries.
Our fired brick making machine Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website(www.yfbrickmachine.com) after password provided;
4. Provide customers with various brick making equipments;
5. provide services like process design, kiln design, workshop design;
6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers;
7. After brick machine running, we have special aftersale service department to provide spare parts, machine
JZ250 Small clay brick making machine
JZ300 Non-vacuum clay brick producing line:
DZK26 Clay Brick Vacuum Extruder:
JKR30 Vacuum clay brick production line
JKR35 Clay brick making machine:
JKRL35 Vacuum brick production line with unloader and brick loading cars:
JKR40 Vacuum Clay block making machine in Mexico:
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
JZK50 Double stage vacuum extruder running in Uganda
JKY60 Auto brick production line with tunnel kiln and dryer:
Yingfeng Automatic brick stacking machine
Q: How do i can service for installation and after sales service?
A: We can provice service from China also we have overseas service center to supply you local service.
Q: How long can you delivery the machine?
A: Generally, we can deliver the machine in 15~25 days.
Q: How much land area and how much investment do we need to open on clay brick plant:
A: Different daily capacity need different area and investment, we would give you suggestions after
getting your message to us.
Q: How about your machine quality?
A: Before our machine is sent to buyer, we would make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can
completely trust our quality.
All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number
of strict testing ensure to offer the best quality to our customers.
