Quick Details

  • Condition: New
  • Type: clay brick machine, small brick making machine
  • Brick Raw Material: Clay
  • Processing: Brick Production Line
  • Method: non vacuum extruder
  • Automatic: Yes
  • Capacity: 10000-18000 pcs/8hrs
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Yingfeng
  • Model Number: JZ250
  • Voltage: 220~440 V
  • Power: 11kw
  • Dimension(L*W*H): 3300*800*1000mm
  • Certification: ISO9001
  • Warranty: 2 years
  • After-sales Service Provided: Overseas service center available
  • Applied for: small brick factory
  • Brick type: solid
  • Brick raw material: mud,soil,clay,fly ash,etc
  • Kiln type: hoffman
  • Color: customized

Packaging & Delivery

Packaging Details: container
Delivery Detail: 10 days after recieved down payment

Newest Technology small brick making machine,JZ250 small clay brick making machine hot sale in market

Product Description

We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30 varieties and over 100 specifications.Now we have built more than 2000 brick production line in China and abroad. Our main products:

Clay Brick Making Machine

Interlock Brick Making Machine

Cement Brick Making Machine

Tile Making Machine

General introduction for JZ250 small brick making machine:

JZ250 small  brick making machine Yingfeng brand non-vacuum clay brick machine is smallest models brick

extruders.It is widely used in small family brick owners.Suitable for family workshops. Also, its compact design

makes machine operation very easily. Therefore we are selling at least 128 sets per year to over 12countries.



The JZ250  small brick making machine has the following advantages:

1.Strong applicability, lower energy consumption,the extruder only 11 KW.

2.The raw material for making bricks can be soil,mud.

3.Solid brick is the best choice.

4.The brick extruder has taken manual brick strip cutter and brick blank cutter.

More types for your choice:

Type

 Capacity(pcs/h)

  Auger Diameter

           (mm)

Extruding Pressure

           (Mpa)

  Extruder Power

         (KW)



Whole production line

 power KW)

JZ250

2000-3000

250mm

0

15

15-47

JZ280

3000-4000

280mm

0

22

50-70

JZ300

4000-6000

300mm

0

30

70-80

JZ350

6000-7000

350mm

0

40

80-95

JZ400

8000-10000

400mm

0

55

120-140

JZ500

13000-16000

500mm

0

90

150-180

The following is some part of brick mould sample which Yingfeng small brick making machine can produce:

Note: We can provide other different brick mould with different mould sizes according to your requirements.

Production Line

JZ250 small brick making machine production line:

Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.

                                                   After brick cutting  how to do brick drying and firing
ItemDrying method Firing methodAdvantage and disadvantage
1Natural dryingBuyer Local kiln Very low investment, but may take more labors
2Natural dryingHoffman kiln A little high investment, but may take more labors
3Natural dryingTunnel kilnHigh investment, but takes less labors than Item 2
4Small tunnel dryerHoffman kiln High investment, but takes less labors than Item 2
5Small tunnel dryerTunnel kilnHigher investment, but takes less labors than Item 4
6Big Tunnel dryerTunnel kilnHighest investment, but takes least labors
Our Workshops

 Yingfeng small brick making machine workshop:



 Yingfeng small brick making machine raw material:

Company Products

Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:

1. Brick making machine, Brick vacuum extruder

2. Belt type box feeder

3. Roller crusher, jaw crusher, hammer crusher

4. Double shaft mixer

5. Automatic brick cutter system

6. Bricks separation machine

7. Belt conveyor

8. Brick dryer

9. Brick tunnel kiln

10.Brick kiln equipment

11. Automatic brick loading and unloading machine

12. Automatic brick packaging machine

13. Automatuc robot brick setting machine

14. Auotmatic brick stacking machine

15. Brick dryer and tunnel kiln design and construcion

16. Technical provide and technical supervision

17. Turn-key project

18. Full automatic brick project

19.clay floor tile making machine

Packaging & Shipping

JZ250 small Clay Brick Making Machine Delievery For Our Clients.   Packing list:

ItemNumber
Brick exturder1 set
Brick Cutting Machine1 set
Motor1 set
V belt1 set
Mould1 set
2 years spare parts1 set
Brick factory Tools1 set
Warranty Card1 copy
Product Manual1 copy

Note: The above packing list is based on standard clay brick production line, if your soil contains stones, grass root, then extra equipment need to be added. The final packing list will be changed according to buyer's final machine order

1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .

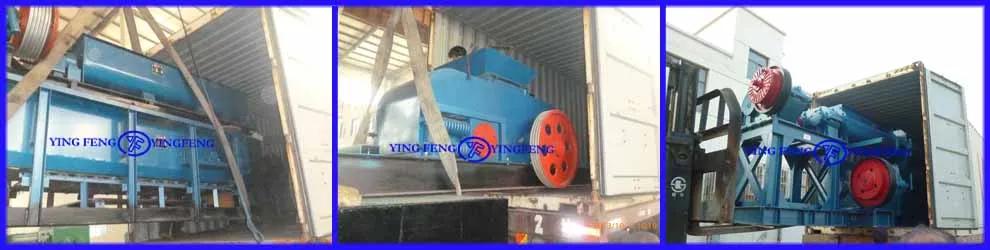

2. Some parts will be given soft protection before feeding in the container to make sure all the machine will

be new when arriving at customer hand.

3.Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.



Our small brick making machine have been exported to countries such as India, Bangladesh ,

Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan,

South Africa, Uganda,  Mozambique,Zimbabwe,Congo,Peru, Brazil, Iraq ,Bolivia Mexico,etc.

and have won great fame and popularity.

Our Services

Our small brick making machine Service :

Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much

more experience to support our buyer of brick machine.

1.Professional international after-sale service center available;
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website(yfbrickmachine.com) after password provided;

4. Provide customers with various brick making equipments;

5. provide services like process design, kiln design, workshop design;

6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,

imparting technical instruction to our buyers;

7. After brick machine running, we have special aftersale service department to provide spare parts, machine

problem fixing.



FAQ

Our Running brick production video link for your reference

( Please adjust the video image quality to 240 or 360P when watching)

JZ250 Small clay brick making machine

https://www.youtube.com/watch?v=dWAmUVbPfXU

JZ300 Non-vacuum clay brick producing line:

https://www.youtube.com/watch?v=sjg7GsfcYfk

DZK26 Clay Brick Vacuum Extruder:

https://www.youtube.com/watch?v=d3ifvCwPU68

JKR30 Vacuum clay brick production line with brick separator:

https://www.youtube.com/watch?v=TBgEnsWOGyM

JKR35 Clay brick making machine:

https://www.youtube.com/watch?v=IQtzh_pjcxA

JKRL35 Vacuum brick production line with unloader and brick loading cars:

https://www.youtube.com/watch?v=IQtzh_pjcxA&feature=youtu.be

JKR40 Vacuum Clay block making machine in Mexico:

https://www.youtube.com/watch?v=YE5dokYK8Jc

JKRL45 Vacuum Clay brick production line with auto brick loading cars:

https://www.youtube.com/watch?v=3DCR2rR_wYA

JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:

https://www.youtube.com/watch?v=AyTanhTc9xI

JZK50 Double stage vacuum extruder running in Uganda

https://www.youtube.com/watch?v=1ISkCpyneqU

JKY60 Auto brick production line with tunnel kiln and dryer:

https://www.youtube.com/watch?v=8R_XzKkDySU&feature=youtu.be

Yingfeng Automatic brick stacking machine

https://www.youtube.com/watch?v=r45s8057XGY

Q: How do i can service for installation and after sales service?

A: We can provice service from China also we have overseas service center to supply you local service.

Q: How long can you delivery the machine?

A: Generally, we can deliver the machine in 15~25 days.

Q: How much land area and how much investment do we need to open on clay brick plant:

A: Different daily capacity need different area and investment, we would give you suggestions after

getting your message to us.

Q: How about your machine quality?

A: Before our machine is sent to buyer, we would  make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can

completely trust our quality.

All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number

of strict testing ensure to offer the best quality to our customers.



Contact Us

Contact us:

China Mobile Number ( Whatsapp, Wechat ,Viber):  008615039963315   or  0086 18638712391

Email:  kai(at)zzyfmc.com     skype: fanchen588

Facebook: fanchen588(at)hotmail.com

Web: www.yfbrickmachine.com

How to visit us or check clay brick making machine quality

If you want to visit our Chinese factory, please note our city name, Zhengzhou city.

Our air port name is : Zhengzhou Xinzheng International air port.

Train station name is: Zhengzhou (Zhengzhou north) train station

You can also visit our brick plant in your local places
