Quick Details

  • Condition: New
  • Type: clay brick machine
  • Brick Raw Material: Clay, clay,soil,mud,shale, coal slack, fly ash etc.
  • Processing: Brick Production Line
  • Method: Vacuum Extruder
  • Automatic: Yes
  • Capacity: 13000-15000 pcs/h(Chinese standard brick), 11000-12000pcs/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Yingfeng
  • Model Number: JKR45
  • Voltage: 220~440V
  • Power: 110kw
  • Dimension(L*W*H): 6.5X1.8X2.5
  • Certification: ISO9001:2000
  • Warranty: 2 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Power(KW): 110
  • Dimension: 5.4X2.6X1.5
  • feature: High productivity
  • export: 25 years
  • type: clay brick production line

Packaging & Delivery

Packaging Details: container
Delivery Detail: 25 to 30 days after recieved deposit

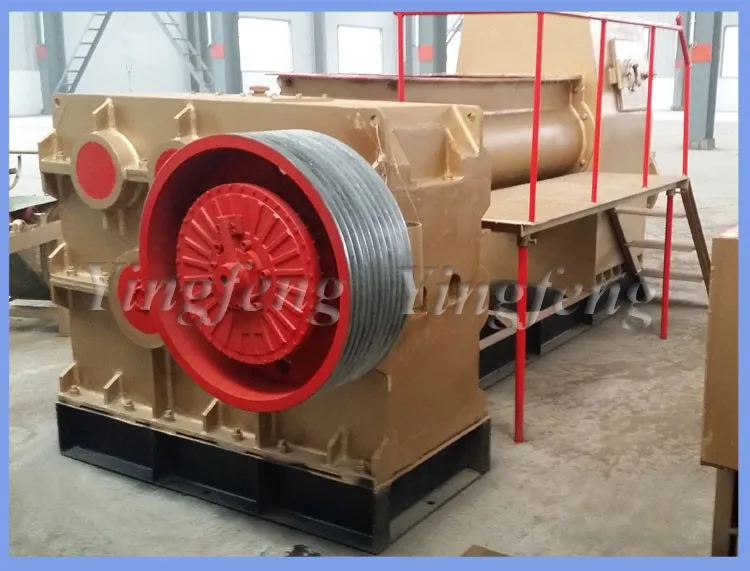

China famous Yingfeng JKR45 clay brick production line

Company Information

Zhengzhou Yingfeng Machinery Co.,Ltd., has been a high  tech enterprise in brick making machinery
since 1987, which integrating the science, ,industry and trading. Our company has more  than 30 brands
 , hundreds of specifications for brick and tile machinery.Our company  provides customers with various:

  • Clay brick making equipment
  • Interlock brick making machine
  •  Concrete block making machine
  • Paver and curbstone machine
  • Clay and Concrete Tile press machine
  • Pug mill extruder
  • Refactory product press machine

You can also directly visit our website www.yfbrickmachine.com  to find more details



JKR Brick machine

More technical parameters for your reference:

Model

Auger diameter(mm)

Capacity

Extruder Power

(KW)

Whole production line

power(KW)

JKR28/28-2.0

280

3000~4000(pcs/h)

37

70~90

JKR30/30-2.0

300

4000-6000(pcs/h)

55

110-120

JKR35/35-2.0

350

7000-8000(pcs/h)

75

120-140

JKR40/40-2.5

400

8000-10000pcs/h

90

175-190

JKR45/45-2.5

450

11000-12000pcs/h

110

210-230

JKR50/50-3.5

500

13000-16000pcs/h

160

260-280



Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

Production Line

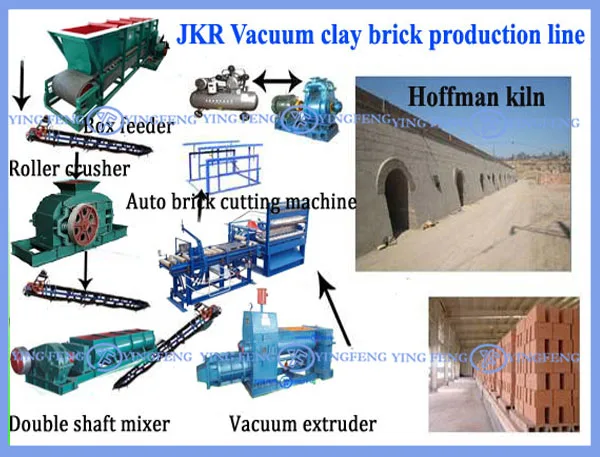

Yingfeng JKR45 brick machine production line:

Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.

                                                   After brick cutting  how to do brick drying and firing
ItemDrying method Firing methodAdvantage and disadvantage
1Natural dryingBuyer Local kiln Very low investment, but may take more labors
2Natural dryingHoffman kiln A little high investment, but may take more labors
3Natural dryingTunnel kilnHigh investment, but takes less labors than Item 2
4Small tunnel dryerHoffman kiln High investment, but takes less labors than Item 2
5Small tunnel dryerTunnel kilnHigher investment, but takes less labors than Item 4
6Big Tunnel dryerTunnel kilnHighest investment, but takes least labors





Workshop&Certificate

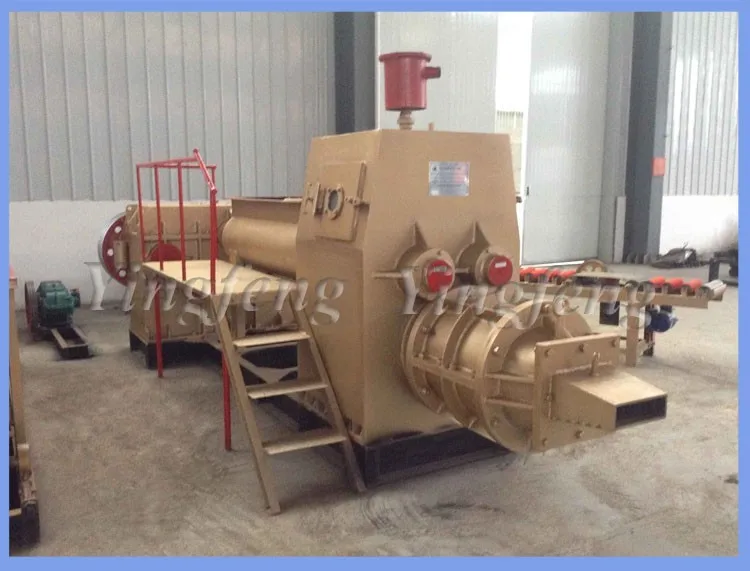

Yingfeng JKR45 brick machine production line workshop:

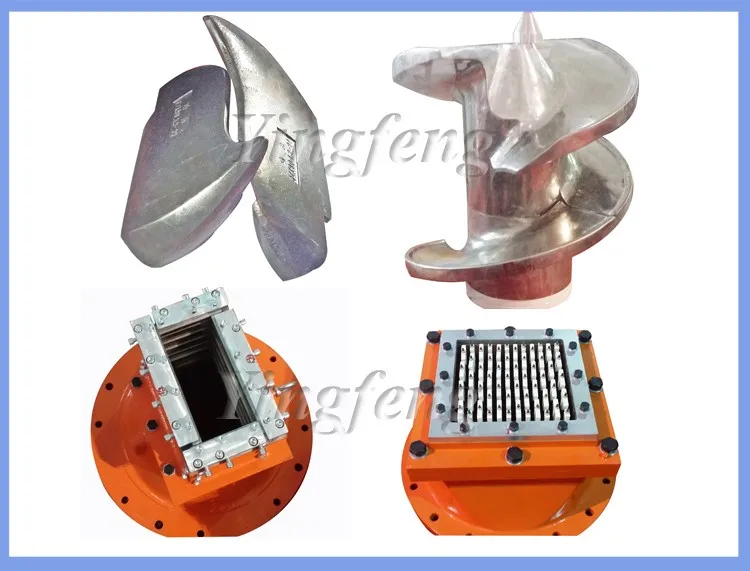

Raw material for making JKR45 brick machine production line:

Note: we are responsible for our clients when we choose raw material for our clients,
1. auto oil lubricating system can save labors and it's easy to lubricate extruder's gears and bearings automatically. On the other hand, the lubricating oil can be recycled and to use again, so it can save oils too.
2..For doubles shaft mixer blades, we choose 45 Carbon steel.
3..For roller crusher ,we use high manganese
4.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
5. For hollow brick mould, we use wear resistance ceramic  material as core to ensure longer mould service life.

Our certificates

Packaging & Shipping



JKR45 brick machine production line delivery for our clients,Here is the Packing List:



ItemNumber
 Brick exturder1 set
Box Feeder1 set
Double Roller Crusher1 set
Clay Shaft Mixer1 set
Brick Cutter1 set
Auto-board bearer1 set
Vacuum Pump1 set
Air compressor1 set
   Motor1 set
Belt conveyor3 set
   V belt1 set
Mould1 set
Electric cabinet1 set
Secondary Control cabinet3 set
2 years spare parts1 set
Brick factory Tools1 set
 Warranty Card  1 copy
 Product Manual  1 copy



Note: The above packing list is based on standard clay brick production line, if your soil contains stones, grass root, then extra equipment need to be added. The final packing list will be changed according to buyer's final machine order

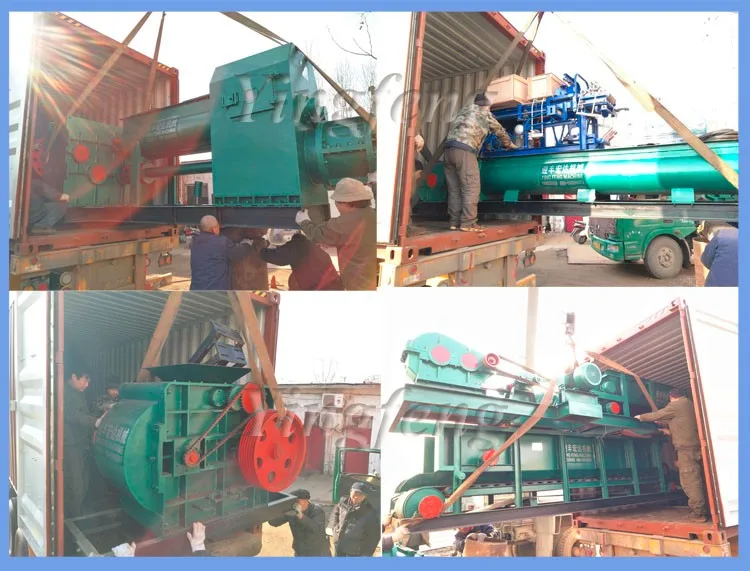

clay brick machine production line delivery for our clients :

1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .

2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be

 new when arriving at customer hand.

3. Inside the container, we will fix the machine with steel wire,to make sure all the machine will be fixed safety.



Our Services

Our brick machine production line Service :

Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much

more experience to support our buyer of brick machine.

1.Professional international after-sale service center available;
2.Successfully running unit abroad for customer’s study and reference;
3.Manual book and videos are available on our offical website(yfbrickmachine.com) after password provided;

4. Provide customers with various brick making equipments;

5. provide services like process design, kiln design, workshop design;

6. Also, we have a professional team of engineers to do clay brick machine installation, training workers,

imparting technical instruction to our buyers;

7. After brick machine running, we have special aftersale service department to provide spare parts, machine

problem fixing

.

FAQ

Our Running brick production video link for your reference

(  Please copy the following link to your internet address bar  )

 JKR45 Vacuum Clay brick production line with auto brick loading cars:

http://www.yfbrickmachine.com/detail-146-jkr45claybrickfactory



Q: How do i can service for installation and after sales service?

A: We can provice service from China also we have overseas service center to supply you local service.

Q: How long can you delivery the machine?

A: Generally, we can deliver the machine in 15~25 days.

Q: How much land area and how much investment do we need to open on clay brick plant:

A: Different daily capacity need different area and investment, we would give you suggestions after

getting your message to us.

Q: How about your machine quality?

A: Before our machine is sent to buyer, we would  make trial for our each machine 48 hours to ensure each machine quality is perfect no bug,you can

completely trust our quality.

All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number

of strict testing ensure to offer the best quality to our customers.
